Smart Pet Enclosures
Designed for enclosed pet spaces to improve air freshness and reduce odors and airborne particles.

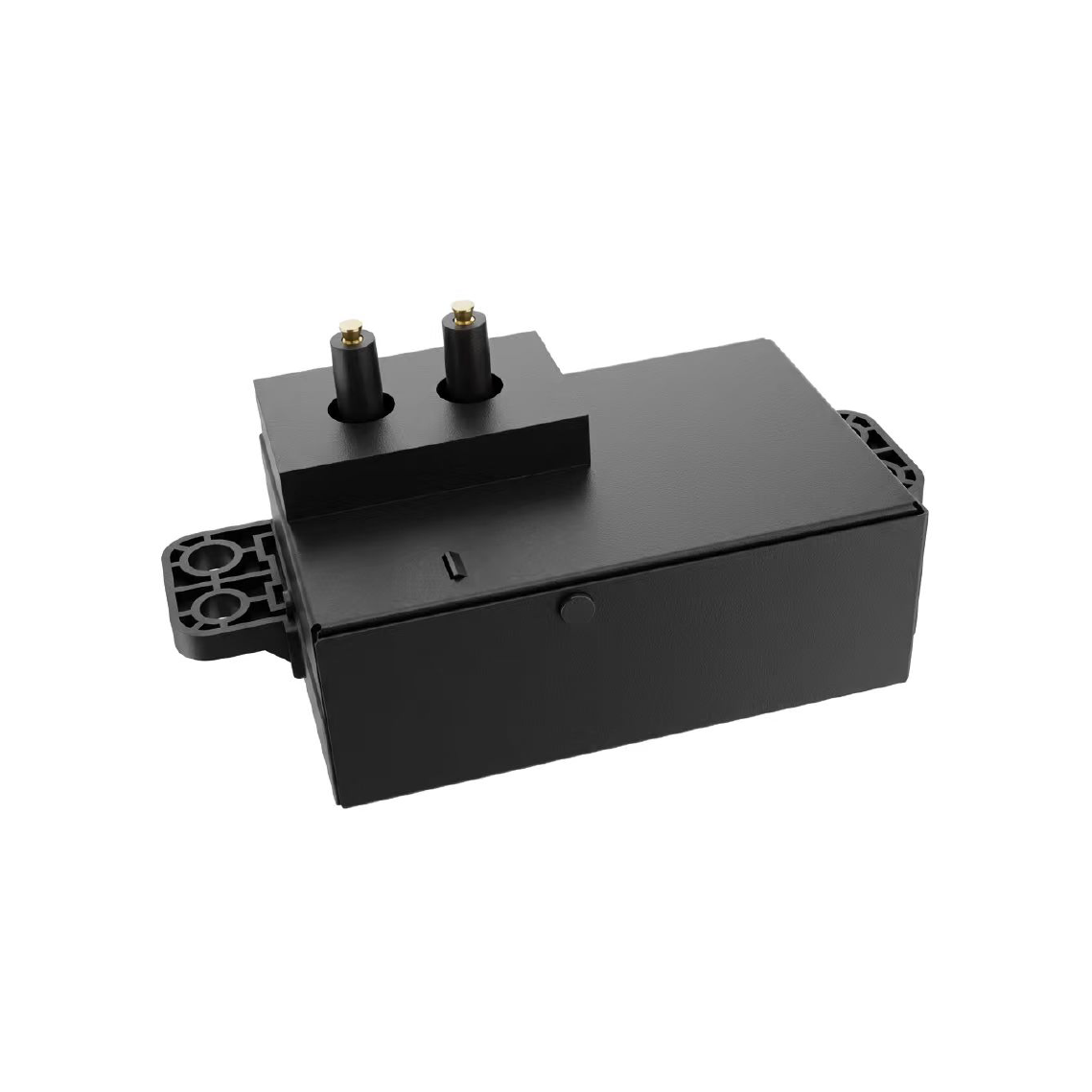

T01 Pet Negative Ion Module
The T01 is a negative ion module designed for smart pet enclosures and other enclosed pet spaces. It continuously releases high-concentration negative ions to improve in-cabin air quality, reduce odors and airborne particles, and create a fresher, more comfortable environment for pets. With low power consumption, low ozone output, and stable long-term operation, it is built for safe and reliable daily use.
- High-efficiency negative ion output for cleaner pet enclosure air
- Low ozone control for safer pet use
- Low-noise operation that does not disturb pets
- Compact structure for easy system integration
- Low power design for continuous operation

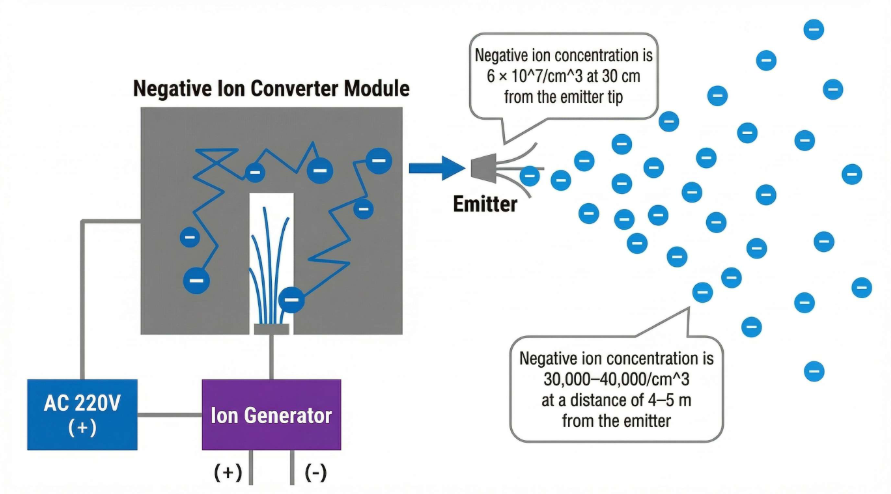

Negative Ion Technology Principle
Negative Ion Principle Diagram
Technical Specifications
Operating Voltage
DC 9 – 16 V
Operating Current
≤ 40 mA
Standby Current
≤ 0.1 mA
Communication
Hardwired Communication
Ion Concentration
≥ 5 million pcs/cm³ (25 cm from the carbon brush, airspeed 3 m/s)
Ozone Concentration
≤ 0.05 PPM
Operating Temperature
-30 ℃ – +80 ℃
Storage Temperature
-40 ℃ – +85 ℃
Applications
Pet Resting Spaces
Suitable for enclosed pet resting areas to help maintain a cleaner and more comfortable breathing environment.
Pet Air Care Systems
Supports integrated pet air care solutions with stable negative ion output for continuous operation.
Pet Purification Devices
Compact and easy to integrate into pet-focused purification devices and smart enclosure systems.
